+++> 3.Examples to Create Process Chains

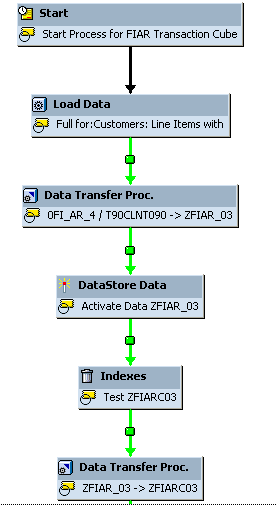

  1. Process for the Info Cube “FIAR Line Item Cube” (ZFIARC03).

Tech Name & Description:
ZFIARC03 (Process Chain for FIAR Transaction Cube)
Data flow:
Data Source → DSO → Info Cube
Objects:
  1. Data source: (0FI_AR_4)
Info Package: ZPAK_50QKGMJRG8B70DLER8H1ABSSQ
  1. DSO (ZFIAR_03)

 DTP: DTP_A98QDQ1EY1PPGVOB895M9XTHM
  1. Info Cube (ZFIARC03)
DTP: DTP_BNG7U9JQVUZAWVQH4PPFEIHSA

  1. Process for the Info Cube “FI General Ledger Cube” (0FIGL_C20).

Tech Name & Description:
ZFIGL_C20 (Process Chain for 0FIGL_C20)
Data flow:
Data Source → Info Cube
Objects:
  1. Data source: (0FI_GL_20)

Info Package: ZPAK_8SN2OTI0BDHM33JHFTKV6WO7E

  1. Info Cube (0FIGL_C20)
DTP: DTP_2H77UOOTFQSZ2LPQ53X3IPRBE

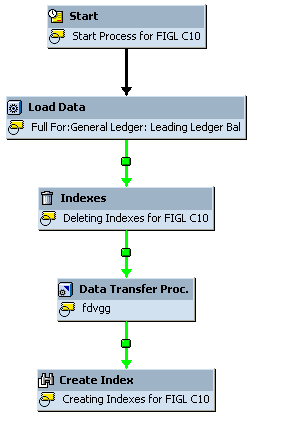

  1. Process for the Info Cube “FI General Ledger Cube” (0FIGL_C10).


Tech Name & Description:
ZFIGL_C10 (Process Chain for FIGL C10)
Data flow:
Data Source → Info Cube
Objects:
  1. Data source: (0FI_GL_10)
Info Package: ZPAK_9CU68CXRBODIUT0EA678QB7GQ

  1. Info Cube (0FIGL_C10)
DTP: DTP_E2GT00YQCIN02Z2WQU7NZ57KA

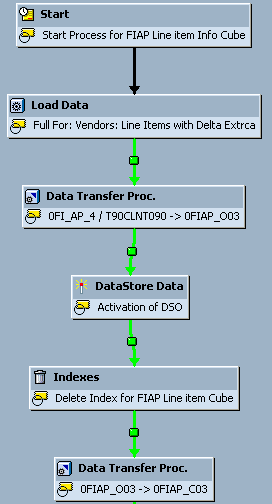

  1. Process for the Info Cube “FIAP Line Item Cube” (0FIAP_C03).

Tech Name & Description:
ZFIAPC03 (Process Chain for FIAP C03 (Line Item))
Data flow:
Data Source → DSO → Info Cube
Objects:
  1. Data source: (0FI_AP_4)

Info Package: ZPAK_9EGX02EOK8IT9MJBLELB66OP6

  1. DSO (OFIAP_O03)

DTP: DTP_8SX0FKVAIYGIN6RYVH6QSPZM2

  1. Info Cube (OFIAP_C03)

DTP:DTP_0L2358Z4M7L94NTF43YZIGJGQ



  1. Process for the Info Cube “Offers/Orders Cube” (0SD_C05).

Tech Name & Description:
ZSDC05 (Process Chain for 0SD C05)
Data flow:
Data Source → Info Cube
Objects:
  1. Data source: (2LIS_12_VCITM)
Info Package:

0PAK_BRVUSRMNGB6XOI8IQQ23GGJUY

  1. Info Cube (0SD_C05)
DTP: DTP_4S2VD0NEC5NS3B5B2LR8391U2

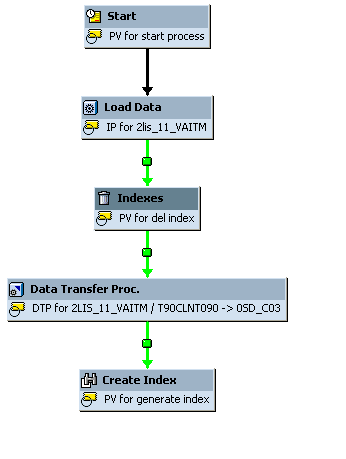

  1. Process chain for the Info Cube: 0SD_C03.
Application components for Process Chain: AC_REP
Process Chain Name/description: PC for loading  0SD_C03 from 2LIS_11_VAITM
IP id: ZPAK_8SIA1ZI3HADP2RWKOCCIRIG0A
Dtp id: DTP_C3UYCLBCANV94E40L81TXMGZU




  1. Process chain for the Info Cube: 0PUR_C01
Application components for Process Chain: AC_REP
Process Chain Name/description: PC for 0pur_c01
IP ID: ZPAK_4OBP3UNGBK1MON8Y5Y4RZEIKQ
DTP ID: DTP_1LK0XKB1LVDPWLV0XQ1YMBJBE

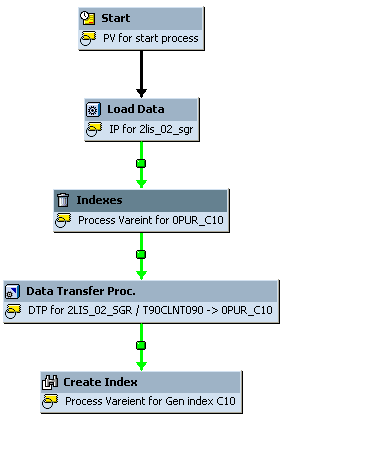

  1. Process chain for the Info Cube: 0PUR_C10
Application components for Process Chain: AC_REP
Process Chain Name/description: PC for 0pur_c10
IP ID: ZPAK_1VTKK5HRREIMGMKK7X15IZWCQ
DTP: DTP_2POC7NP2KIA03KKSAKM0VG6MI

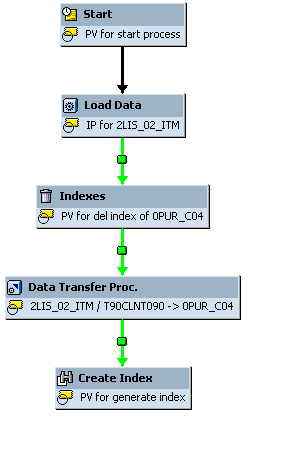

  1. Process chain for the Info Cube: 0PUR_C04
Application components for Process Chain: AC_REP
Process Chain Name/description: PC for 0pur_c04
IP: ZPAK_1Y1ALR7B5L5PD9DF9O560353E
DTP: DTP_40MPSDU35Y36E9R2PPYHHENPM

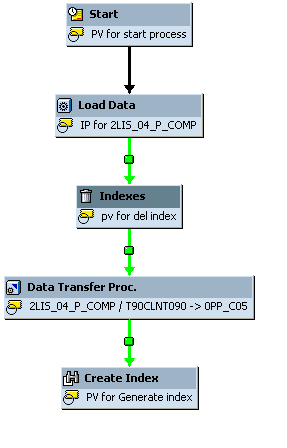

  1. Process chain for the Info Cube: 0pp_c05
Application components for Process Chain: AC_REP
Process Chain Name/description: PC For 0pp_c05
IP: ZPAK_0AB5PW1PXM9Q5G8DCGRHTOOSQ
DTP: DTP_73EOR3JZOIGUO76XT7AOOVO96



                                                                     **********************
